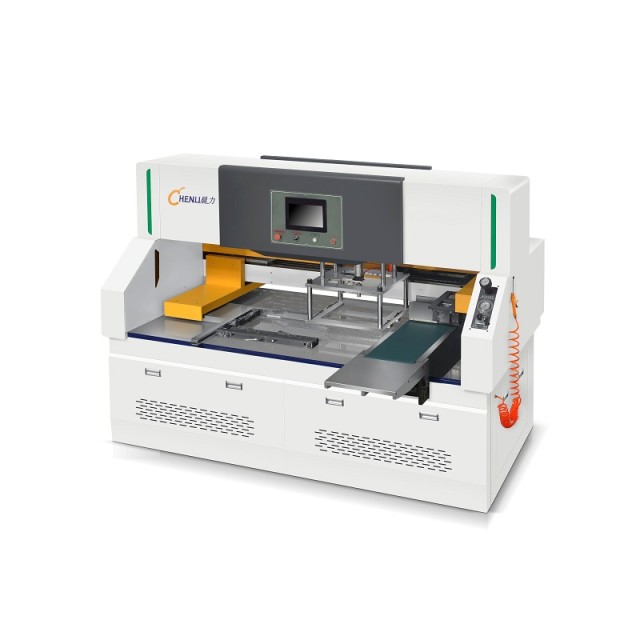

QF banking machine is the professional equipment for automatic stripping the finished sheet(like tag, trademark) from paperboard and plastic sheet, etc. after die cutting.
Online InquiryIntroduction
QF series automatic blanking machine is the professional equipment for automatic stripping folding boxes, tags, hangers, IML, paper labels, blister cards and plastic packaging
Features
The robot replace the person to take the product
Replaces hand stripping with an automated process
Increases productivity at converting
Reduces headcount
Strip folding boxes, tags, hangers, IML, paper labels, blister cards and plastic packaging
Simple low-cost tooling
Optional system configurations available
Apply to all kinds of auto die cutting machine and semi-auto die cutting machine
No more hand stripping, raising production and increasing efficiency
Technical Parameters
|
Model |
QF-780F |
QF-920F |
QF-1080F |
|
Max sheet size(mm) |
780x540 |
920x650 |
1080x780 |
|
Min sheet size(mm) |
550x280 |
550x280 |
600x400 |
|
Max pile height(mm) |
80 |
80 |
80 |
|
Min pile height(mm) |
40 |
40 |
40 |
|
Bench height(mm) |
850 |
850 |
850 |
|
Max stripping size(mm) |
360x360 |
360x360 |
360x360 |
|
Min stripping size(mm) |
30x30 |
30x30 |
30x30 |
|
Stripping speed(times/min) |
25 |
25 |
25 |
|
Max pressure(bar) |
80 |
80 |
90 |
