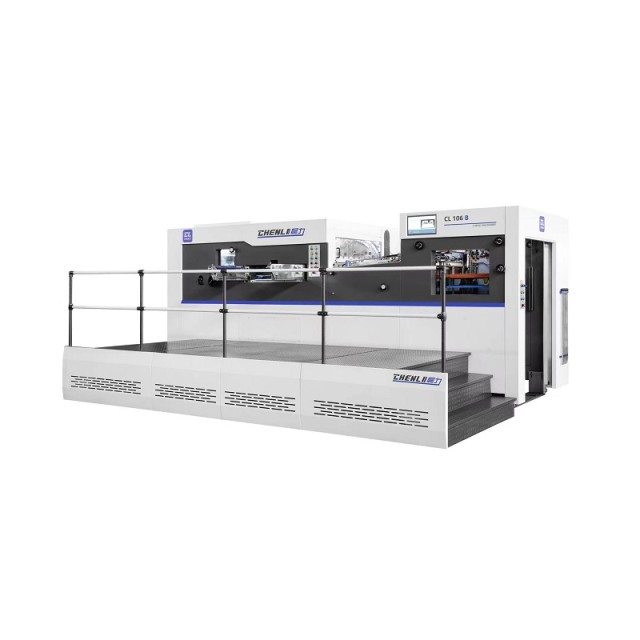

CL106B diecutting machine is the key device for the production of cartons, paper boxes and high standard paper products,and plastic products etc. It is especially applicable to the automatic die-cutting of complicated paper boxes and cigarette cases to rationalize the production of paper boxes.This machine adopts a motion control system for integrated assembly, transportation, and installation, which is convenient for operation, greatly reduces processing costs, runs more stably, The precise assembly and high configuration make it better than Taiwan machines, and competitive with Japan machines.
Introduction
CL106B diecutting machine is the key device for the production of cartons, paper boxes and high standard paper products,and plastic products etc. It is especially applicable to the automatic die-cutting of complicated paper boxes and cigarette cases to rationalize the production of paper boxes.This machine adopts a motion control system for integrated assembly, transportation, and installation, which is convenient for operation, greatly reduces processing costs, runs more stably, The precise assembly and high configuration make it better than Taiwan machines, and competitive with Japan machines.
Technical Parameters
|
Model |
CL106B |
|
Max. Sheet Size |
1060×760mm |
|
Min. Sheet Size |
400×350mm |
|
Max. Die Cutting Size |
1060×745mm |
|
Gripper Margin |
9-17mm |
|
Cutting Rule Height |
23.8mm |
|
Inner Chase Size |
1090×790mm |
|
Paper Range |
Cardboard: 80-2000g/m2 Corrugated ≤4mm |
|
Maximum Cutting Pressure |
300t |
|
Maximum Working Speed |
7500s/h |
|
Maximum Pile Height at Feeder |
1630mm |
|
Maximum Pile Height at Delivery |
1480mm |
|
Machine Dimensions(L*W*H) |
5600×4100×2300mm |
|
Net Weight of Machine |
17t |
|
Main Motor Power |
11kW |
|
Total Power Required |
23kW |
|
Air Requirement |
Air Pressure: 0.6-0.7Mpa, Flow Rate: >0.37m2/min |
